— Data Recorder —

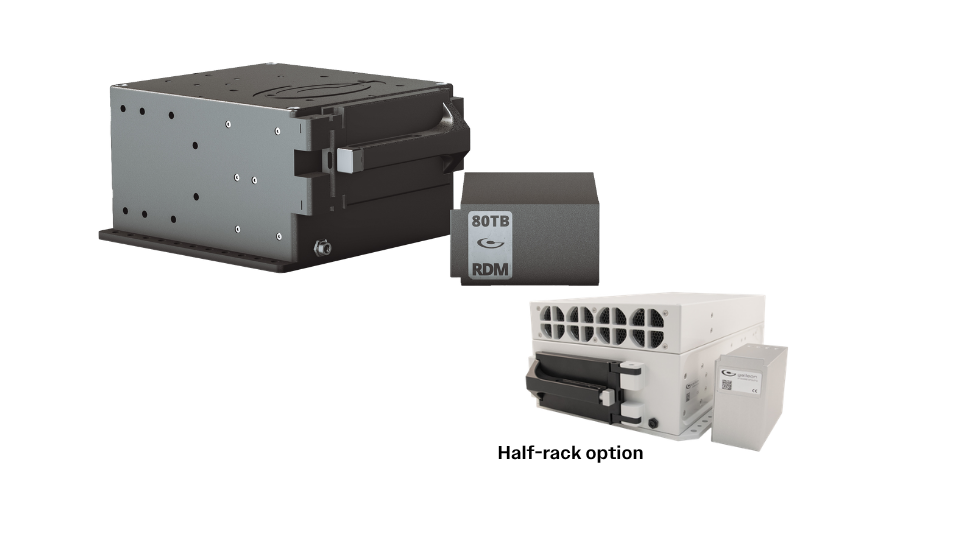

XSR Rugged Ethernet Recorder Series
Compact, high-performance data recording platform that captures UDP or TCP/IP data, scalable from Gigabit Ethernet through 100 Gigabit Ethernet
100GbE
Scalable Ethernet
80TB
Removable SSD
2GB/s
Sustained recording
−40°C to +71°C
Extended temperature
Description
Each XSR configuration captures UDP or TCP/IP data from multiple concurrent Ethernet interfaces. The series supports Intel Xeon processors, including Xeon W-11865MRE options, and up to 96GB of DDR4 SDRAM with ECC. The open-architecture design is based on commercial off-the-shelf (COTS) modules, enabling technology refresh and supporting obsolescence management for a decade or more.
Case study
When a trusted customer needed it most, Spectra Norway delivered a complete rugged data recording solution in just six months.
Unmanned systems
Deployed across unmanned air, ground and sea platforms (UAS, UGV, UUV), pods and ground vehicles.
Sensor and video recording
High-speed sensor recording, HD video recording and sensor development over multiple concurrent Ethernet interfaces.
Flight test and surveillance
Flight test instrumentation and surveillance applications requiring high-bandwidth, high-density data capture.
Key features & benefits:
Key features
- Optional CSfC-approved data-at-rest encryption
- NTP or GPS time and date synchronization
- Remote control via C++ API over GbE
- Rugged miniature 38999 connectors on all interfaces
- Tested to MIL-STD-810, MIL-STD-461
Benefits
- SWaP-C optimized
- High bandwidth
- High storage density
- Flexible and scalable
- Rugged conduction-cooled and air-cooled designs
