— Distribution & Routing —
Move data where it matters. At the speed it demands.
Fiber optic switching, secure KVM management and high-bandwidth I/O cards engineered to route, split and distribute mission-critical data across the most demanding deployed network architectures, from 1GbE to 40GbE and beyond.
Up to 40GbE
Single-card throughput
VPX / VME / CPCI
Cross-platform compatible
EAL4 certified
Red/black data separation
Fielded on mission-critical defense platforms worldwide
Land
Air
Sea
Space
— Core Capabilities —
The Spectra Advantage
Why defense programs choose Spectra for mission-critical data distribution and routing.
Every speed, one architecture
From Gigabit Ethernet to 40GbE and fiber optic channels at 25Gbps — Spectra I/O cards and switching products cover the full bandwidth spectrum on a single platform architecture.
- 1GbE through 40GbE Ethernet
- Fiber optic up to 25Gbps/channel
- sFPDP up to 10.3125Gbps/link
Secure operator control
EAL4-certified KVM switches enforce strict red/black data separation, while fiber optic extenders place operators up to 400m from source equipment — without latency or security compromise.
- NAIP EAL4-certified KVM switches
- Fiber optic extension to 400m
- DVI, USB and audio management
Drop-in board-level integration
XMC-format I/O cards fit directly into VPX, VME and CPCI single-board computers — available in both air-cooled and conduction-cooled variants with front panel or P16 rear I/O routing.
- VPX, VME, CPCI compatible
- Air-cooled and conduction-cooled
- Front panel or P16 rear I/O
— Product Listings —
Distribution & Routing Solutions

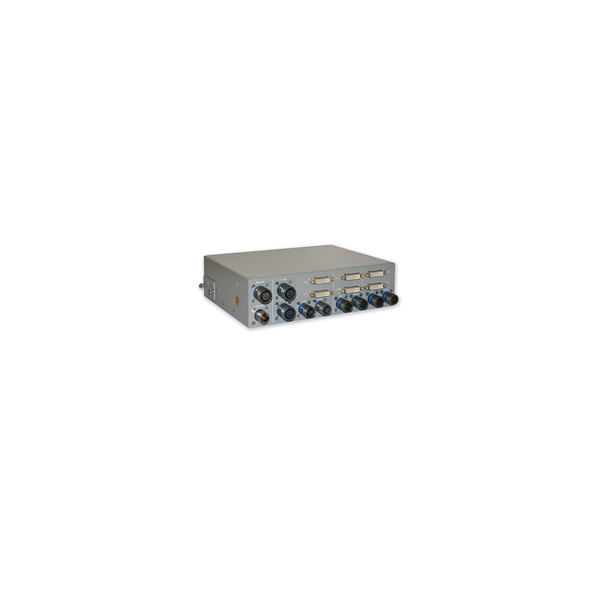

Analog Fiber Optic KVM Extender
Ruggedized analog fiber optic KVM extender transmitting USB and RGB video up to 400m with near-zero latency for C5ISR consoles.
Titan 40GbE XMC
Ruggedized 40GbE XMC interface module with up to 4 optical ports, x8 PCIe Gen3 and IEEE 1588 precision timing.

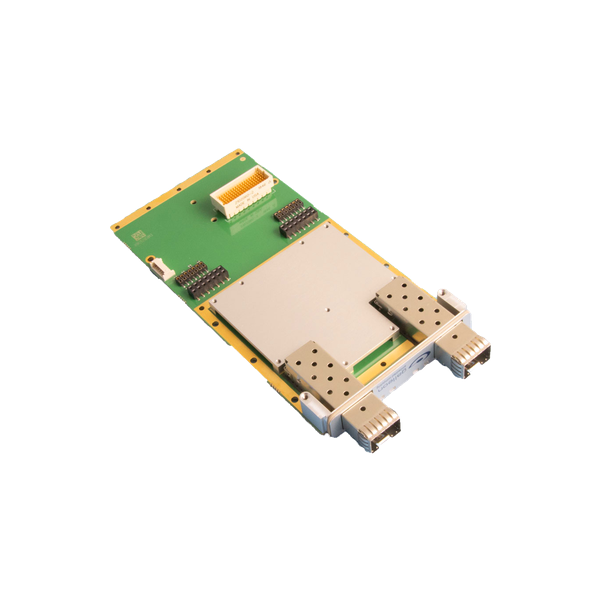

Titan Dual 25GbE XMC
Ruggedized dual 25GbE XMC interface module with 10GBASE-SR fallback, IEEE 1588 PTP and x8 PCIe Gen3 for embedded platforms.

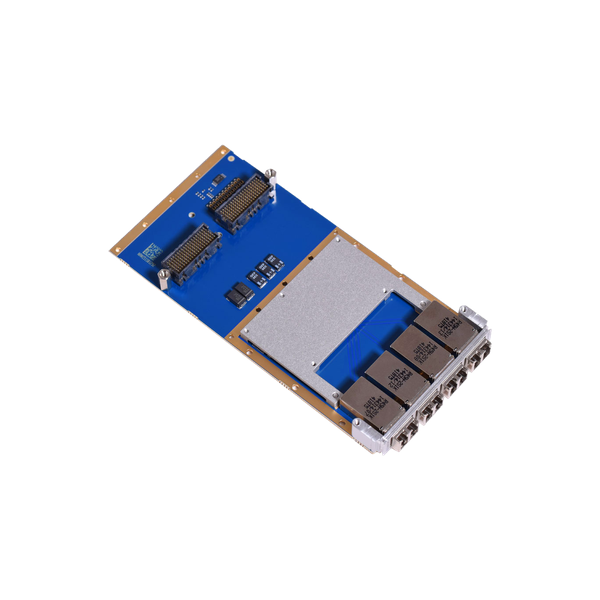

Titan Quad 10GbE XMC
Ruggedized quad 10GbE XMC interface module with per-packet timestamping, rear P16 KX4/XAUI output and x8 PCIe Gen3.

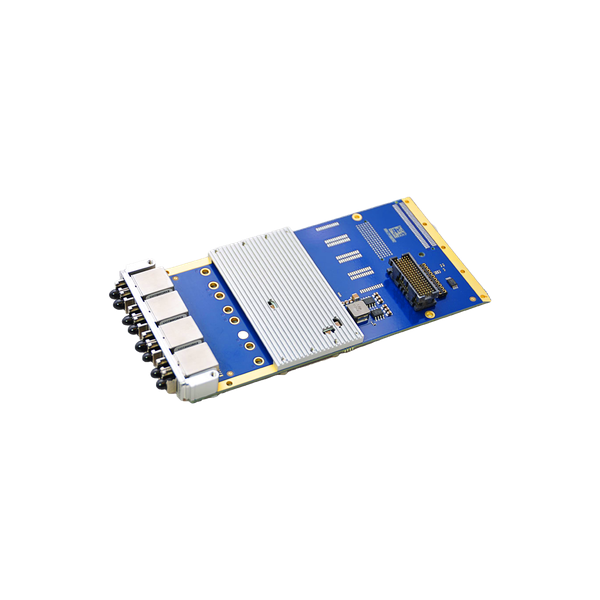

Titan Quad Gigabit Ethernet XMC
Ruggedized quad GbE XMC interface module with 1000BASE-SX optical ports, IEEE 1588 PTP and rear PMC P14 copper output.

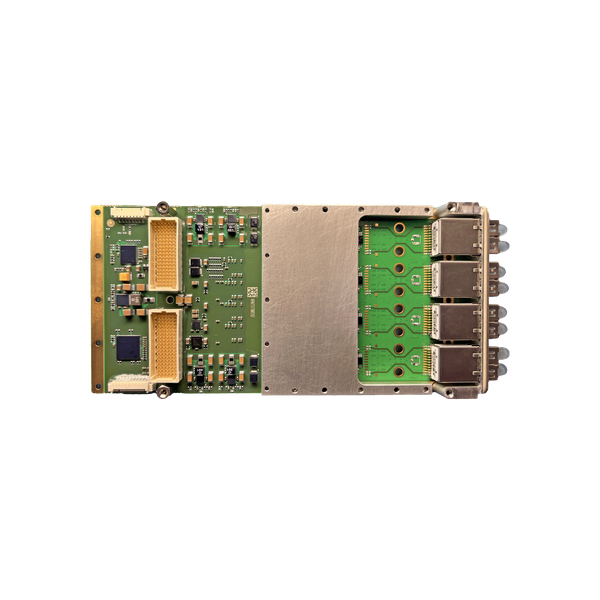

Titan sFPDP XMC
Ruggedized sFPDP XMC interface module with Intel Arria 10 FPGA, 4 VITA 17.1/17.3 channels and software-upgradable firmware.

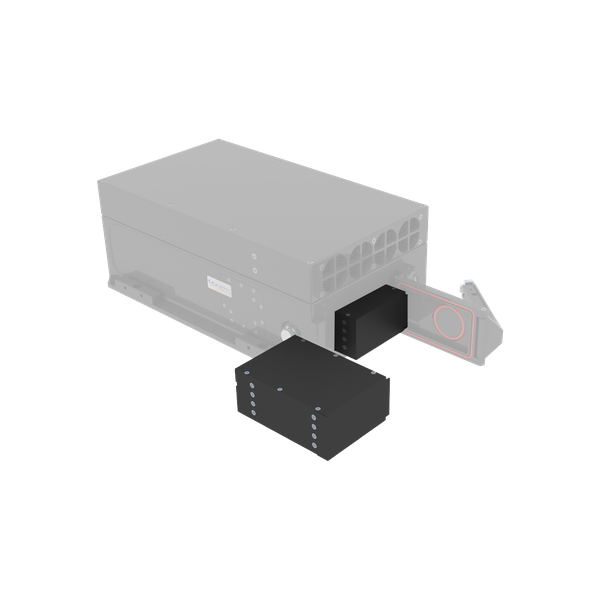

XSR Removable Data Module (RDM)
Field-swappable ruggedized storage module housing 4 SSDs with up to 80 TB capacity and FIPS 140-2 validated XTS-AES 256-bit encryption.
Simplify your network architecture
Need a custom I/O combination, a specific fiber optic topology or a secure KVM configuration for a unique platform? Our network architects have been solving these integration challenges across hundreds of deployed programs.
