— Computer —

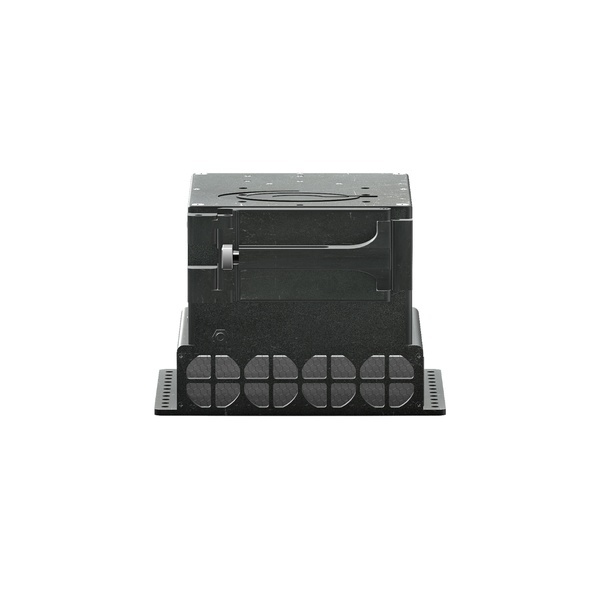

XSR Mission Computer
Compact ruggedized mission computer with 13-port GbE networking, 96GB DDR4, Intel Xeon Gen 11 processing and modular XMC/MiniPCIe I/O expansion for airborne and ground applications.
13× GbE
Standard network ports
96 GB
DDR4 system memory
23W
Idle power draw
60k ft
Operational altitude
Description
The XSR Mission Computer is a compact, ruggedized computing platform built on Intel Xeon Gen 11 processors with 96GB DDR4 and 13 standard GbE RJ45 ports for mission-critical network routing. Two chassis variants — compact conduction-cooled and air-cooled — support deployments from 6 lb on fixed-wing ISR and rotary-wing platforms to ground vehicle vetronics. Optional XMC and MiniPCIe expansion modules add 10GbE, 25GbE, 40GbE or sFPDP interfaces without hardware redesign. CSfC-compatible dual-layer XTS-AES 256-bit encryption, NIAP approval and FIPS 140-2 compliance meet classified data handling requirements across air and ground domains.
Advantage
13 standard GbE ports and modular XMC/MiniPCIe expansion deliver flexible high-speed networking at 23W idle in a MIL-STD-810 ruggedized chassis — all on a single Size, Weight and Power (SWaP)-optimized platform with CSfC-compatible encryption ready for classified deployments.
Airborne mission processing
Real-time sensor fusion and network routing on fixed-wing and rotary ISR platforms, with GPS NMEA and NTP time sync and conduction-cooled chassis rated to 60,000 ft.
Vetronics integration
Low-power mission computing for ground vehicle command and control, with 16–40V DC input, RS-232/422 serial I/O and a MIL-STD-810-qualified chassis suited for armored and wheeled platforms.
Rapid capability insertion
XMC and MiniPCIe expansion slots accept 10GbE, 25GbE, 40GbE and sFPDP I/O cards, enabling field-upgradable interface expansion without chassis redesign or program-level hardware changes.
Key features & benefits:
Key features
- Intel Xeon Gen 11 processor with 96GB DDR4 ECC memory
- 13× GbE RJ45 standard; optional 10GbE, 25GbE, 40GbE and sFPDP via XMC/MiniPCIe
- GPS NMEA + 1PPS and NTP time synchronization
- 16–40V DC; 23W idle / up to 85W max; Linux or Windows OS
- MIL-STD-810 and MIL-STD-461 qualified; rated to 60,000 ft altitude
Benefits
- 23W idle SWaP advantage enables deployment on size-constrained airborne and ground platforms
- CSfC-compatible SWFDE and HWFDE XTS-AES 256-bit encryption with NIAP approval and FIPS 140-2 for classified missions
- Modular XMC and MiniPCIe expansion avoids costly hardware redesigns during capability upgrades
- AS/EN 9100 and ISO 9001 quality management with AS9100-certified manufacturing
- Two chassis options — compact conduction-cooled from 6 lb and larger air-cooled — match platform integration constraints
