— Data Recorder —

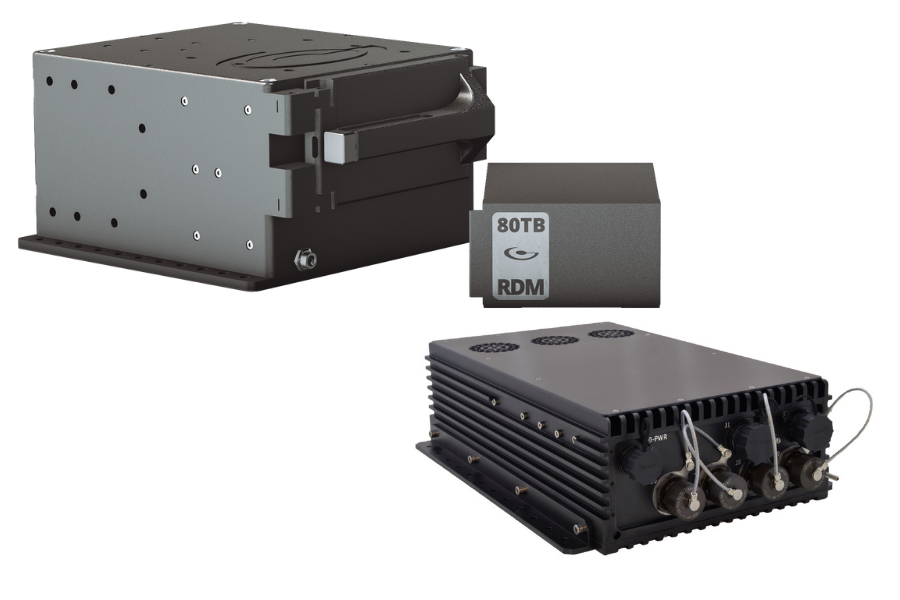

XSR Serial FPDP Recorder
Records up to eight optical Serial FPDP channels plus Ethernet, with removable storage for fast data offload.
10.3125Gbps
Max Serial FPDP link speed
80TB
Removable SSD capacity
2GB/s
Recording bandwidth
9.9 lb
Weight, min configuration
Description
The XSR sFPDP Recorder captures Serial FPDP at link speeds up to 10.3125Gbps and supports Intel Xeon processors, including 11th generation options, with up to 96GB of DDR4 SDRAM with ECC. Built on commercial off-the-shelf (COTS) open architecture modules, it supports technology refresh and long-term obsolescence management. Optimized for unmanned systems, pods and ground vehicles, it is designed to withstand harsh environmental conditions.
Advantage
A size, weight, power and cost-optimized design pairs full-rate optical capture with Removable Data Modules (XSR RDMs) for instant access to recorded data.
Test and evaluation
Missile testing and radar development, recorded at full link rate with time-correlated data via GPS or NTP.
Survey and research
Geological survey, seismic and physics research programs that generate sustained high-rate data.
Deployed sensor recording
High-speed sensor data capture aboard unmanned systems, pods and ground vehicles in harsh environments.
Key features & benefits:
Key features
- Up to eight-channel Serial FPDP
- VITA 17.1 and 17.3 compliant
- Rugged LC Duplex or expanded beam optical connectors
- Optional FIPS 140-2 and AES-256 encryption
- Conduction, forced air or fanless convection cooling
Benefits
- Sustained capture at full link rate
- Short ground times between test runs
- Time-correlated data via GPS or NTP
- Remote control through a C++ API
- Technology refresh path through COTS open architecture
