— Network Attached Storage —

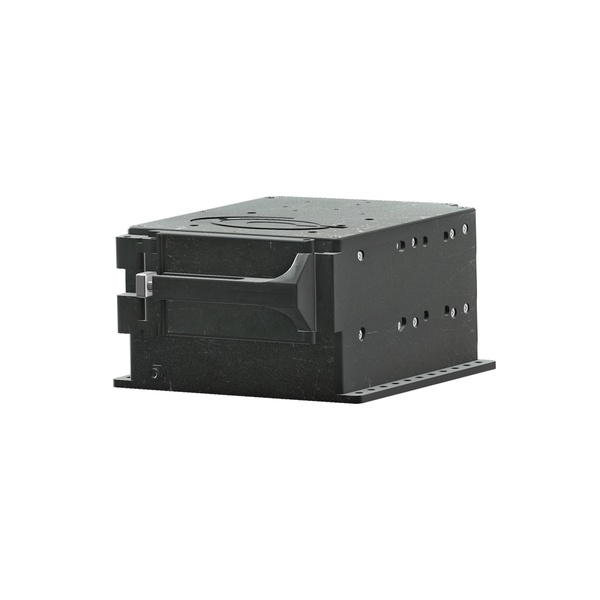

XSR Rugged NAS
Ruggedized airborne NAS with 13-port GbE, up to 80TB SSD and RAID 0, 1 and 5 for mission-critical ISR data management at altitude.
13× GbE
Standard network ports
80 TB
MLC SSD capacity
RAID 0/1/5
Flexible storage modes
60k ft
Operational altitude
Description
The XSR Rugged NAS delivers ruggedized, high-capacity network-attached storage for airborne ISR and tactical edge platforms. Built on Intel Core i7 or Xeon processors with up to 96 GB SDRAM, it provides 13 standard GbE ports with optional 10GbE, 25GbE and 40GbE upgrade paths, up to 80TB MLC SSD storage in RAID 0, 1 and 5 configurations, and support for SMB/CIFS, NFS, AFP, FTP, HTTP and rsync protocols. GPS and NTP time synchronization, optional XTS-AES 256-bit FIPS 140-2 encryption and MIL-STD-810 and MIL-STD-461 qualification ensure reliable data management from 3.7 kg in SFF or half-rack form factors at altitudes up to 60,000 ft.
Advantage
Combines a 13-port GbE switch, up to 80TB SSD and multi-protocol file serving in a Size, Weight and Power (SWaP)-optimized airborne chassis. Flexible RAID and JBOD modes, scalable high-speed network options and optional FIPS 140-2 encryption make the XSR Rugged NAS the single storage node for complex multi-sensor ISR payloads.
Airborne NAS for ISR
Provides shared, high-capacity network storage across multi-sensor payloads on fixed-wing and rotary platforms, consolidating EO, IR and radar data streams into a single ruggedized node without additional switching infrastructure.
Tactical edge data distribution
NFS, SMB and rsync protocols distribute mission data to crew workstations and ground exploitation systems in real time, enabling in-flight analysis and immediate post-sortie exploitation without additional transfer hardware.
Multi-sortie data management
JBOD and RAID flexibility supports both maximum-capacity and redundant-storage mission profiles, allowing operators to configure the XSR Rugged NAS for high-volume collection sorties or data-protection-critical reconnaissance missions without hardware changes.
Key features & benefits:
Key features
- 13× GbE standard; optional 8×10GbE-T/SR, 4×25GbE-SR/LR/CR or 2×40GbE-SR4 high-speed network expansion
- Up to 80TB MLC SSD or 40TB SLC SSD; RAID 0, 1 and 5; JBOD; XSR RDM removable storage
- SMB/CIFS, NFS, AFP, FTP, HTTP and rsync file-serving protocols; EXT4, UFS, FAT and NTFS file systems
- GPS and NTP time synchronization; Intel Core i7 or Xeon up to Gen 9; 96 GB SDRAM
- MIL-STD-810 and MIL-STD-461 qualified; 16–40V DC; SFF (157×201×103 mm) or half-rack chassis from 3.7 kg
Benefits
- Integrated GbE switching and NAS in a single SWaP-optimized airborne chassis eliminates separate switch hardware
- Optional XTS-AES 256-bit FIPS 140-2 software full-disk encryption protects mission data at rest without performance penalty
- Scalable high-speed network options from 10GbE to 40GbE support payload upgrades without chassis replacement
- AS/EN 9100 and ISO 9001 certified manufacturing ensures repeatable quality for defense program requirements
- Linux Enterprise Server and FreeNAS OS options provide open-architecture flexibility for mission-specific software integration
