— Display —

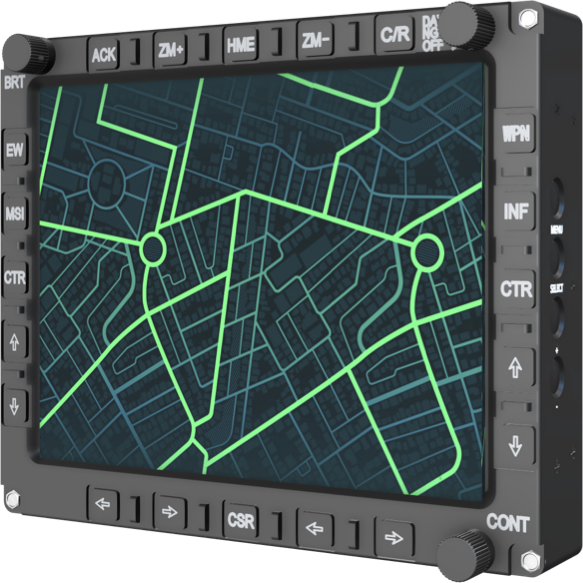

ASD84 Rugged Small Display
8.4-inch ruggedized smart display with optional Windows 10 computing, 20 bezel buttons and military connectors for mounted and dismounted C5ISR operations.
8.4″
Viewable diagonal
400 nits
Standard brightness
3.0 lbs
System weight
40k ft
Operational altitude
Description
The ASD84 is an 8.4″ ruggedized TFT LCD display delivering VGA, SVGA or XGA resolution at 400 nits in an 8.1″ × 6.7″ × 1.5″ aluminum enclosure at 3.0 lbs. An optional Windows 10 compute module adds USB, RS232, GigE and WiFi 802.11x capability. Military circular connectors, 20 bezel buttons, analog-resistive touch screen and Day/Night controls adapt the unit to mounted and dismounted C5ISR operations.
Advantage
Optional Windows 10 computing with GigE and WiFi combined with 20 bezel buttons and a daylight-readable panel make the ASD84 a self-contained 8.4-inch C5ISR terminal.
Mounted vehicle operations
Serves as a self-contained C5ISR display terminal in armored vehicle crew stations where integrated computing, GigE connectivity and 20 configurable bezel buttons support tactical workflows.
Dismounted soldier systems
Provides a 3-pound display with optional WiFi and Windows 10 compute for handheld and pack-mounted soldier systems requiring a larger screen and full operating system.
Fixed and rotary-wing aircraft
Mounts in cockpit and mission crew stations with Day/Night controls and high-bright option for ruggedized display and integrated compute in space-constrained airborne platforms.
Key features & benefits:
Key features
- 8.4″ TFT LCD with VGA, SVGA or XGA resolution and 400-nit standard brightness
- Optional Windows 10 compute module with USB, RS232, GigE and WiFi 802.11x
- 20 bezel buttons with analog-resistive touch screen and attached stylus
- Military circular connectors with configurable I/O and Day/Night user controls
- 8.1″ × 6.7″ × 1.5″ fully enclosed aluminum enclosure at 3.0 lbs
Benefits
- Integrated computing option eliminates a separate computer in space-constrained crew stations
- 400-nit brightness with 750-nit high-bright option ensures daylight readability in all conditions
- 20 bezel buttons deliver direct-access mission controls without keyboard or mouse
- Fully enclosed aluminum defeats salt fog, sand and moisture ingress
- Wide format option and configurable resolution support diverse C5ISR display requirements
