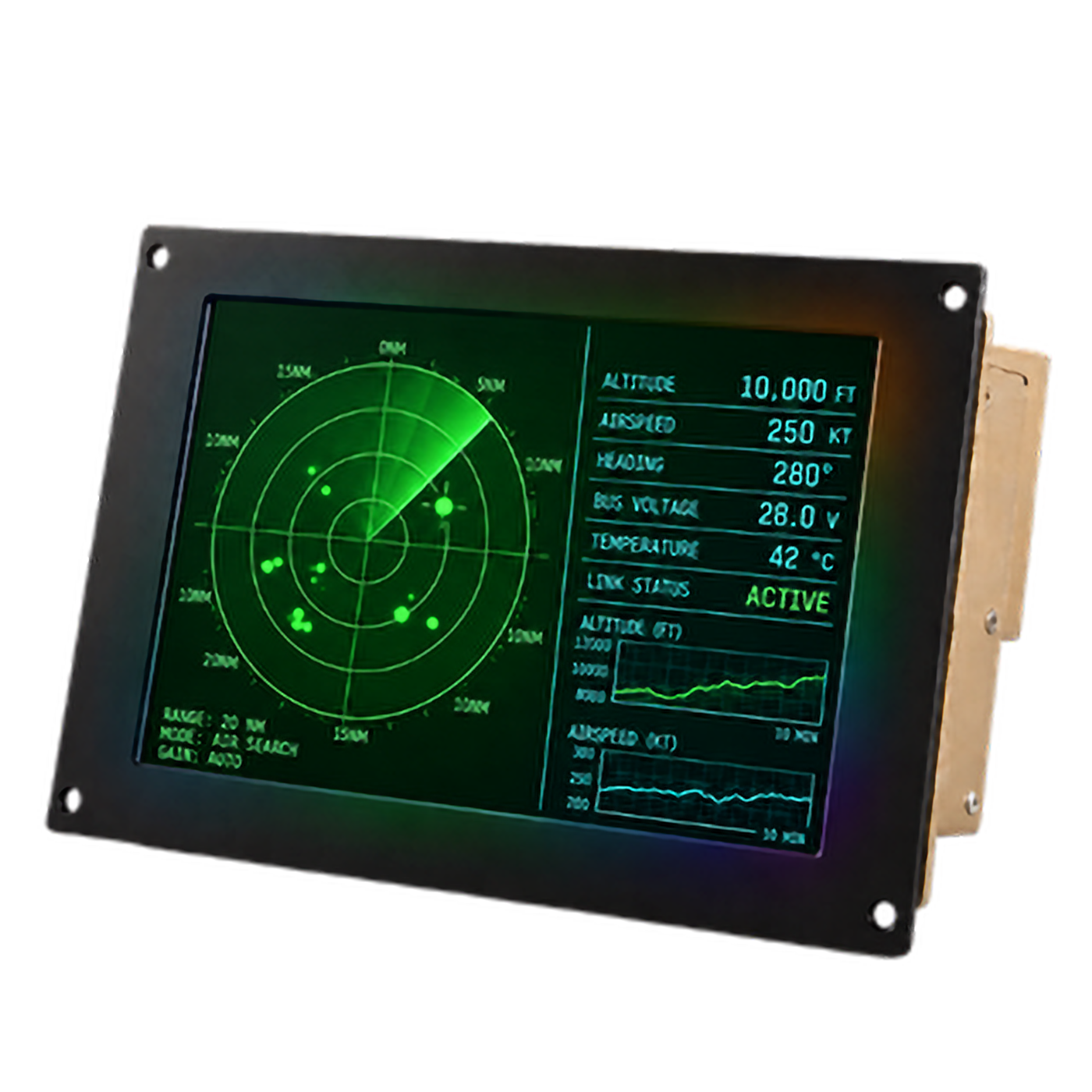

AT104-SDT-1 Rugged Smart Display
Rugged 10.4-inch smart display with integrated Intel Atom® quad-core computing for airborne and land-based applications.
1,000 nits
Display brightness
12W
Maximum power consumption
−40°C to +55°C
Operating temperature
8GB
RAM
Description
The AT104-SDT-1 combines a 1024 × 768 (XGA) LCD and integrated Intel Atom® quad-core processing in a single enclosed aluminum chassis. The unit weighs 4 lb (1.8 kg) and runs from an 18–36 VDC external power input. It is specified for 95% humidity at 77°F (25°C), non-condensing, operating and storage.
Advantage
Spectra Defense Technologies integrates rugged displays and embedded computing into practical solutions for demanding mission environments, supporting platform integration where power availability and system complexity are key considerations.
Airborne platforms
Rugged smart display for airborne applications, with altitude specified up to 40,000 ft, operating and non-operating.
Land-based platforms
Designed for land-based applications, with 20 g operational shock and MIL-STD-810 Method 514 vibration.
Mission applications
Touchscreen operator interface and embedded computing in one unit for mission applications on Windows or Linux.
Key features & benefits:
Key features
- Analog resistive touchscreen for operator human-machine interface (HMI) functionality
- 2x USB 3.1, 2x RS-232/422/485, 2x GbE, 4x GPIO (5V)
- 32GB eMMC flash and 64GB mSATA storage
- Windows or Linux OS support
- Sealed aluminum enclosure
Benefits
- High-brightness viewing and embedded computing in a single enclosed chassis
- Connectivity to mission equipment and platform systems
- Designed to meet selected MIL-STD-810, MIL-STD-461 and DO-160 requirements
- Resists salt fog, sand and dust
- Supports mission applications and operator interfaces
