— Computer —
ACB200

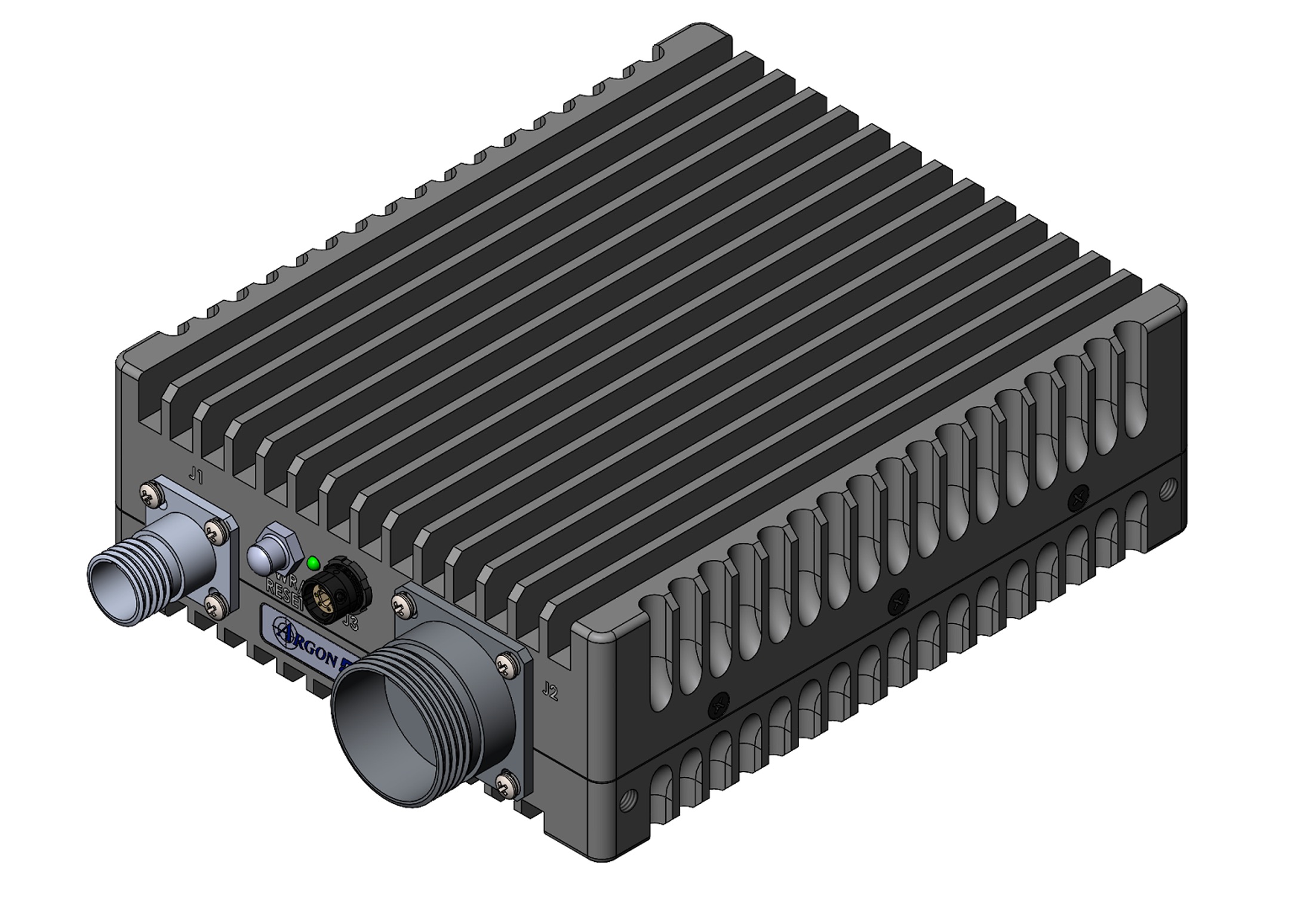

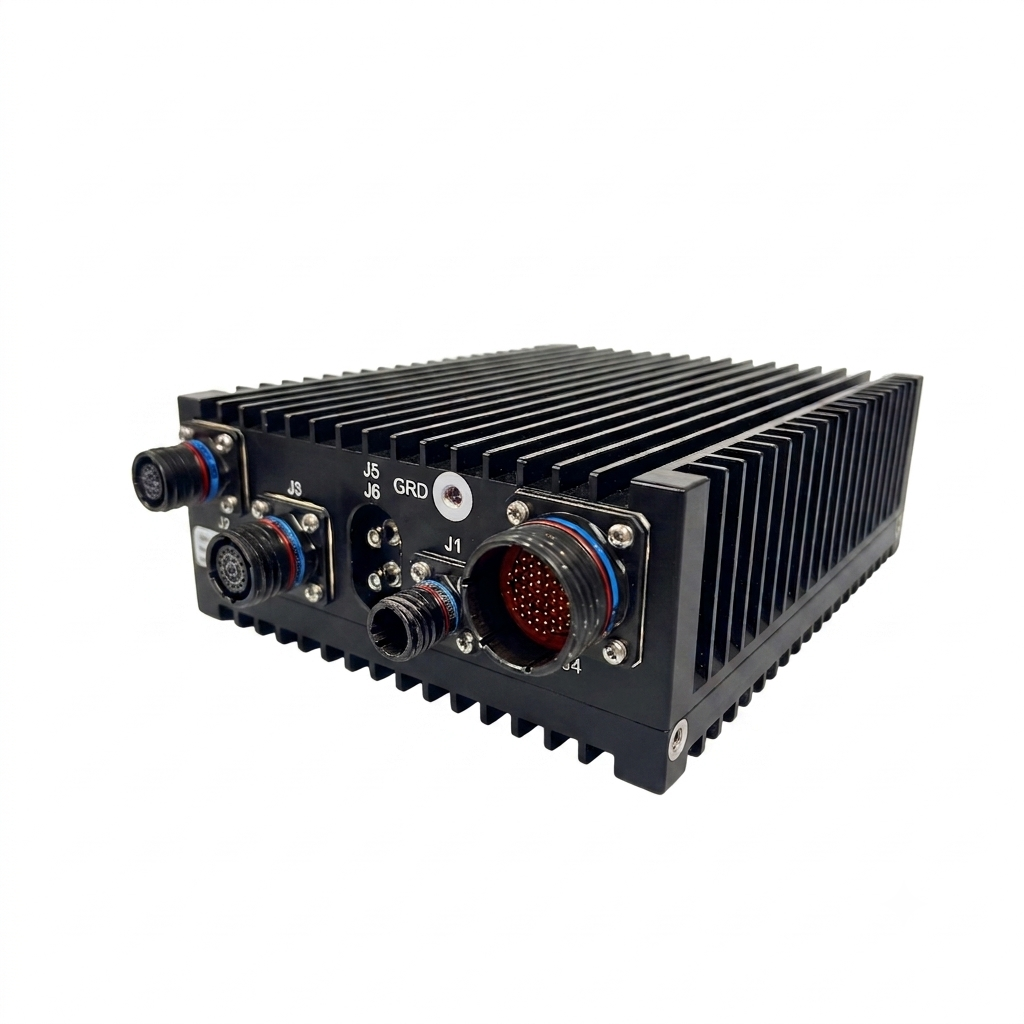

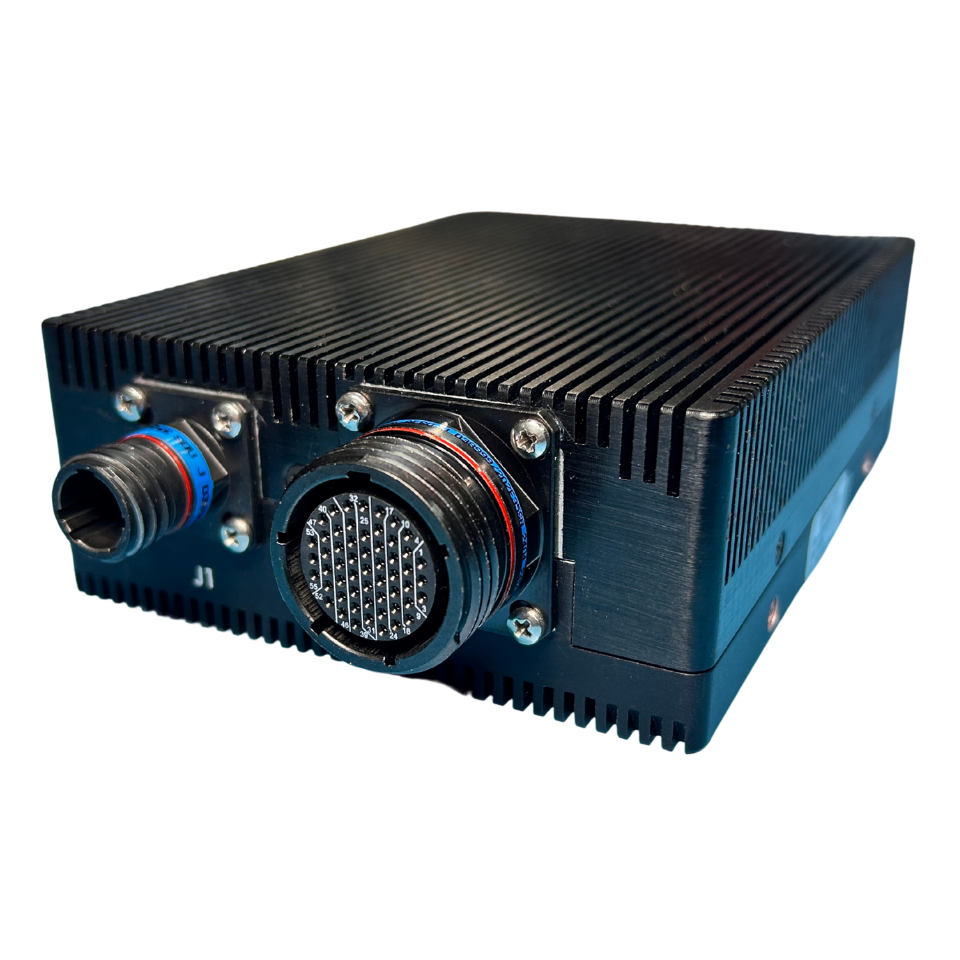

A ruggedized small form factor mission computer for fixed-mount, wearable and unmanned vehicle platforms.
~2.5 lbs
Operating weight
11th Gen i7
Intel processor
60W
Max power draw
40,000 ft
Operational altitude
Description
The ACB200 is a ruggedized mission computer for platforms where Size, Weight and Power (SWaP) is non-negotiable. Powered by an 11th Gen Intel i7 processor with 32GB RAM and 1TB SSD, it supports 4x Ethernet, RS-232 and USB 3.2 interfaces. The fully enclosed milled aluminum chassis accepts custom connectors and mounting configurations, making it deployable across fixed-mount, wearable and unmanned vehicle applications.
Advantage
At approximately 2.5 lbs and 60W maximum power draw, the ACB200 delivers 11th Gen Intel processing in a fully enclosed, ruggedized package designed for SWaP-constrained platforms.
Unmanned systems
Ruggedized SWaP-optimized processing for UAS and unmanned ground vehicle payloads with tight size and weight budgets.
Airborne ISR
Compact mission computing for Intelligence, Surveillance and Reconnaissance (ISR) on manned and unmanned fixed-wing platforms.
Vehicle-mounted C2
Fixed-mount processing node for vehicle-integrated command and control and real-time sensor fusion applications.
Key features & benefits:
Key features
- Intel 11th Gen i7-1185G7E processor, 4 cores, 8 threads
- Fully enclosed milled aluminum chassis
- Customizable I/O, connectors and mounting configurations
- Optional real-time frame grabber for live video capture
- Optional GPS and WiFi 802.11x with flush-mount antenna
Benefits
- ~2.5 lb form factor fits SWaP-constrained platforms
- 9 to 36VDC input accommodates diverse power architectures
- Supports Windows 11 or RHEL for broad software compatibility
- Designed to MIL-STD-461E for EMI-hardened deployments
- Operational to 40,000 ft without performance derating
